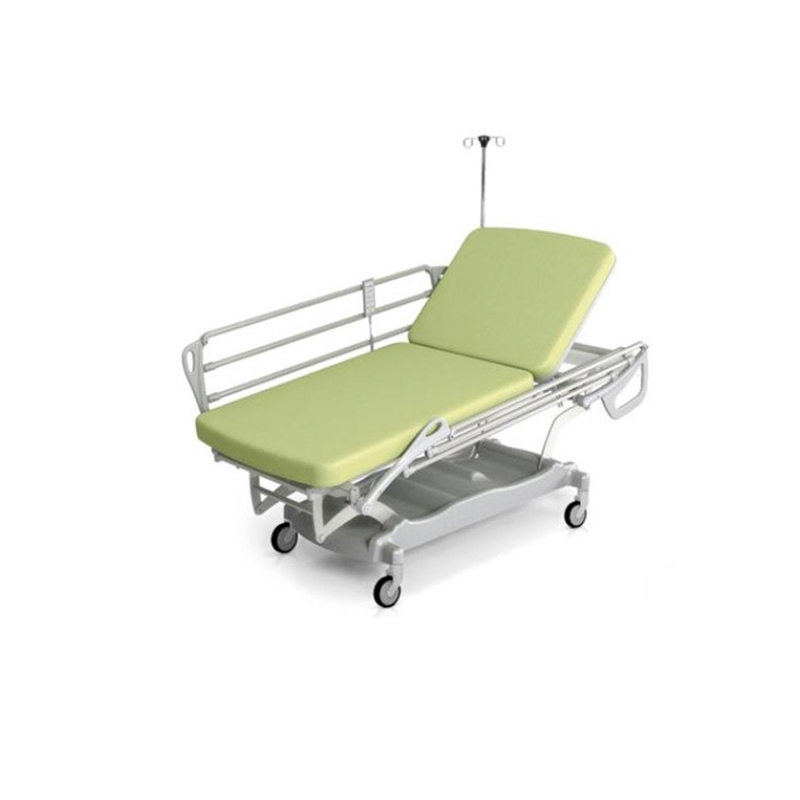

Model: GVT10-AV4100

DESCRIPTION:

• Metal and foldable anti-fall sides
• Two motors for lifting the frame in the Trendelenburg positions and vice versa Trendelenburg.
• An engine for backrest movement
• All adjustable movements from the remote control
• Trendelenburg and Anti Trendelenburg.
• height adjustment from 480 to 880 mm
• Trendelenburg / AntiTrendelenburg from 0 ° to 14 °
• Backrest adjustment from 0 ° to 75 °
• paired wheels, independent, 75 mm in diameter, with braking system
• Each adjustment of the stretcher is allowed with the hands-free control with 3 integrated buttons that activate three electric actuators.
• Such actuators control the height through a column with compass system, Trendelenburg circulation and the back up / down.
• Sponge mattress: 50 kg / m3

Technical data:

• Voltage: 230V +/- 10%
• Frequency: 50/60 Hz
• Power: maximum assimilated 184 W
• Maximum power output: 70 VA
• Noise: <30dB
• Electrical protection: IP 66
• Intermittent use: 6 min./h

Available accessories:

• AV4097A Paper roll holder
• LO0023 Two-hook stand
• AV4091 Stand clip

Maximum load capacity:  320 kg

Trendelenburg / anti Trendelenburg angle: 14 °

Mattress dimensions: L197 x W86 x H7 cm

Stretcher dimensions: W 197.5 x W 86 x H 48 / 88cm
