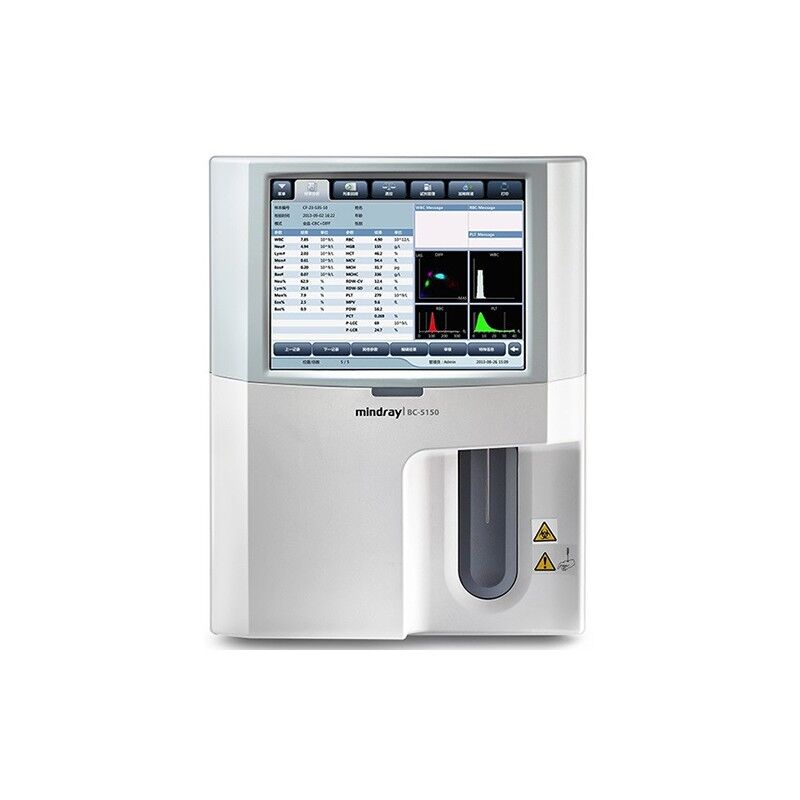

Analizor automat de hematologie

Model: BXA103-B515

DESCRIPTION:

• 60 samples per hour
• 5-diff differentiator, 25 measured parameters +4 calculated parameters, 3 scattergrams and 3 histograms
• Laser scatter technology + Chemical dye + Flow cytometry
• Laser diffusion in three angles for better performance for samples with high ezenophilic concentration
• For measuring basophils it is an independent channel and is made by the optical method
• Remarkable ability to warn abnormal cells
• Works with whole capillary blood for capillary samples
• Large 10.4 inch TFT touch screen
• Large storage capacity: up to 40,000 samples
• Unis or bi-directional LIS connection
• Impedance method for RBC and PLT measurement
• Reactivi fara cianuri pentru testarea hemoglobinei
• Metoda Flow Cytometry (FCM) + Laser light scatter + Chemical dye  pentru analiza de diferentiere  WBC si masurare WBC
• 25 parametrii masurati: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC.
• 4 parametrii calculati LIC%, LIC#, ALY%, ALY#
• 3 histograme pentru WBC, RBC si PLT
• 3 scattergrame: 4-differential scattergram si 2 scattergrame pentru eosenofile
• Diluent, DIFF lyse, LH lyse, probe cleanser

Volumul de proba

•  Prediluat                20 μL
• Sange integral          15 μL
• Sange capilar             15 μL
• 60 samples per hour
• 10.4 inch TFT Touch Screen
• Up to 40,000 results including numerical and graphical information
• LAN Port supports HL7 protocol
• USB, LAN, COM
• Supports one- or two-way LIS connection
• External Laser Printer / Inkjet Printer, various print formats and user defined formats
• Supply voltage: 100V-240V, 50Hz / 60Hz
• Weight: 24kg

Dimensions: 400 D x 320 W 410 H mm
