Sistem PACS pentru imagistica medicala

CARACTERISTICI PRINCIPALE ALE SISTEMULUI

• Foarte stabil – Software oferit de aycan cu sistem de operare Linix
• Foarte rapid – Toate datele pot fi accesate online
• Foarte fiail – Verificari de integritate periodice
• Modular – Construit pe nevoile clientului
• Expandabil
• Vendor Neutral Archive (VNA) – Functioneaza cu statii de procesare de la alti producatori si foloseste formatul de fisiere DICOM pentru arhivare
• Spatii de stocare intre – 2 si 100 TB
• Back-up pe doua seturi de benzi LTO, sisteme NAS, sau alte sisteme de backup existente.

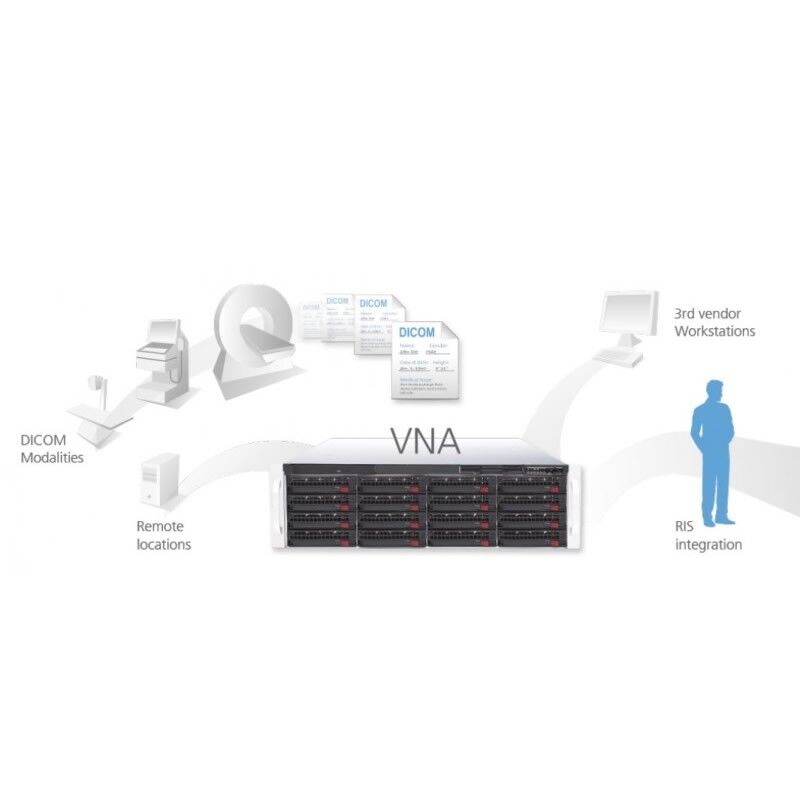

MOD DE FUNCTIONARE SISTEM PACS aycan

CONFIGURATIE PROPUSA A SISTEMULUI PACS



Sistem hardware Supermicro SuperServer SYS- 6028R-TR, cu sistem de operare Linux – 1 buc

–         X10DRi motherboard, 825TQ-R740LPB chassis

–         * Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s

–         * Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots

–         * 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots

–         * Intel® i350 Dual port GbE LAN

–         * Intel C612 controller for 8 SATA3 ports; RAID 0, 1, 5, 10

–         * IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

–         * 8x 3.5″ Hot-swap SATA3 HDD Bays

–         * 740W Redundant Power Supplies Platinum Level (94% efficiency)

–         1 x Intel® Xeon® BDW-EP 8C/8T E5-2609V4 1.7G 20M 6.4GT 85W

–         2 x 8GB DDR4-2400 1R*4 ECC REG DIMM

–         2 x HGST 3.5″ 2TB SAS 12Gb/s 7.2K RPM 128M 0F22799 512e ISE

–         6 x HGST 3.5″ 4TB SAS 12Gb/s 7.2K RPM 128M 0F22795 512e ISE

–         1 x LSI MegaRAID 9361-8i SAS3 Controller W/ 8 Internal Ports AOC-SAS3-9361-8I

–         1 x BTR-TFM4G-LSI00418 LSI00418/05-25444-00 Remote CVKit with CVFlash Module CVFM04

–         1 x LSI BBU-BRACKET-05 Remote Mounting Board BKT-BBU-BRACKET-05

–         2 x CBL-SAST-0556 Internal Mini SAS HD to 4 SATA, 90/90/75/75cm w/75cm SB, S/S

–         1 x AOC-SAS3-9300-8E LSI00343 8-external ports 12Gb/s SAS3; SFF-8644 PCIe 3.0

–         1 x MCP-220-81502-0N SLIM SATA DVD KIT FOR SC813, 815, 825, 835

–         1 x ODD LGTC0N Super Multi, SATA, Slimline, Black, Bulk

–          EWCSC(x1)0% 3 YRS LABOR, 3 YRS PARTS, (x1)ASSEMBLY FEE



Unitate backup pentru server PACS – Synology DS918+, 4-Bay SATA, Intel 4C 1,5 GHz, 4GB, 2xGbE LAN, 2xUSB 3.0

4 x HDD intern 8TB 3.5‘‘ WD Red Pro SATA3 7200RPM 128MB cache 24×7 NASware

28 TB Spatiu total de stocare pentru sistem PACS

32 TB Spatiu total de Backup pentru sistem PACS



Soft aycan store pentru gestionarea inregistrarilor – 1 buc

–         aycan store incl. 6 DICOM nodes

–         2 x DICOM node

–         aycan store autorouting

–         communication protocol intre locatii

–         project planning

–         controling

–         reporting

–         data migration

–         Modificare automata a etichetelor pacientilor in fisierele DICOM

–         Modul de integrare a datelor pacientilor

–         soft myCD ayacan



–         UPS APC Back-UPS RS line-interactive / aprox.sinusoida 1500VA / 865W 6conectori Schuko CEE7, baterie APCRBC124, optional extindere garantie cu1/3 ani (WBEXTWAR1YR-SP-01/WBEXTWAR3YR-SP-01), pentru statiile de lucru

Instalare si training

–         doua zile dedicate instalarii sistemului si training pentru utilizatori
